Product classification
21K Series
DC Breakdown Voltage: 600V (600V-800V)、800V(800V-1000V)、1000V(1000V-1250V)
Leakage Current @75% of Vn (Max.)(With Gap.): 5 uA
Leakage Current @75% of Vn (Max.)(Without Gap.): 25 uA
In. 10 times 8/20us: 10.0 kA
I Max. 2 times 8/20us: 22.0 kA
Hipot Test (Between Leads and Enclosure): 2500V * 1 minute
Typical Capacitance (Max.) (With Gap.): 30.0 pF
1. Part Number Code
2. Product Specification

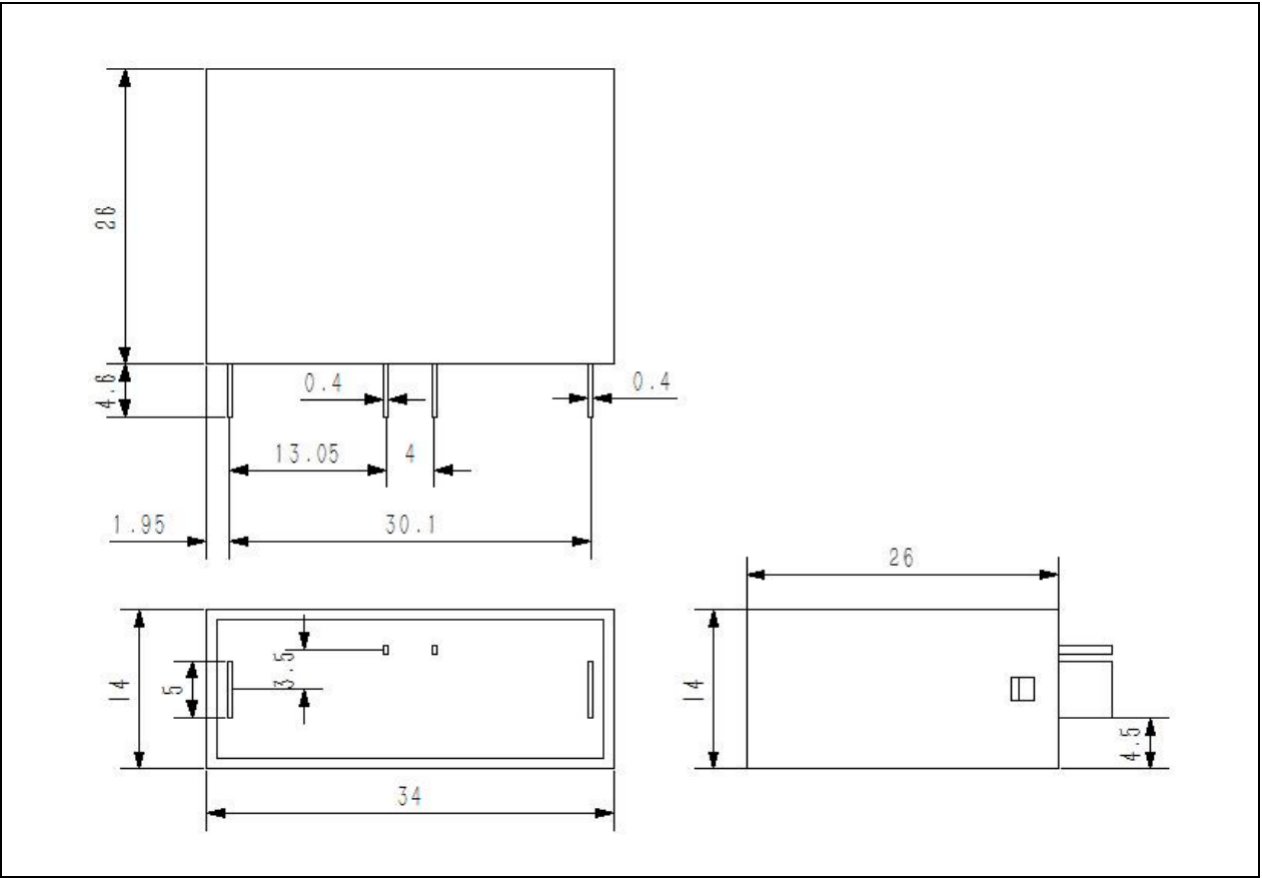

3. Product Dimensions

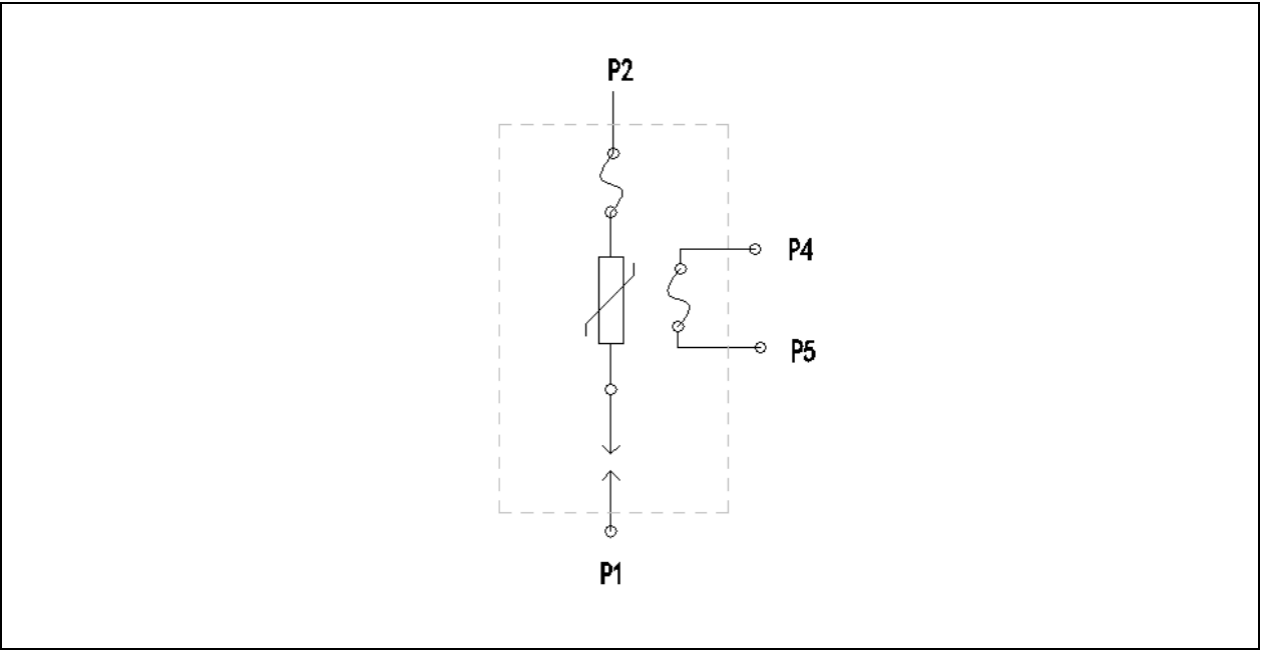

4. Electrical Schematics
